0037838-BALL VALVE FULL PORT TANK 3/4
Click to view Large Image

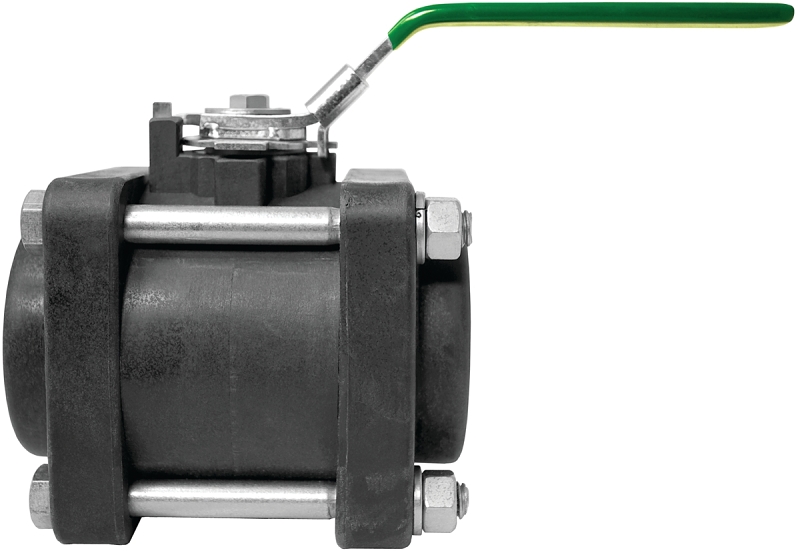

GREEN LEAF V075FP/VX075FP Ball Valve, 3/4 in Connection, Female NPT, 150 psi Pressure, Manual Actuator
GREEN LEAF
Model#: V075FP/VX075FP | UPC: 023537803081 | SKU#: 0037838 Y
Minimum Order Quantity: 1
Qty:  Add To List
Description

Used as a shut off for fluid flow applications - 1/4" turn operation. Precision molded in polypropylene in the USA.

  • FULL PORT
  • FOUR BOLT
  • Size In : 3/4
Product Details
Actuator Type:Manual
Body Material:Polypropylene
Connection Size:3/4 in
Connection Type:Female NPT
Dimensions:3-1/2 in L x 2-1/2 in W x 3 in H
Handle Material:Stainless Steel
Media:Fluid
Number of Ports/ Ways:1
Pressure Rating:150 psi
Softgoods material:FKM/PTFE
Temperature Rating:70 deg F
Features
   • Stainless steel handles with ergonomic design and locking feature for added safety
   • Precision molded in polypropylene
   • Polypropylene is reinforced with fiberglass for additional strength
   • Self-aligning ball moves freely against the Teflon seats for smooth operation
   • The valve opens and closes with little pressure on the handle
   • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
   • Teflon self-lubricating stem bushings and seats cannot stick or bind

Item Specification

Width(in):7.75
Height(in):22.625
Length(in):7.375
Weight(lb):0.9
Estimated Cubic Size (cu in):53.88
