eCatalog Center - Product Detail

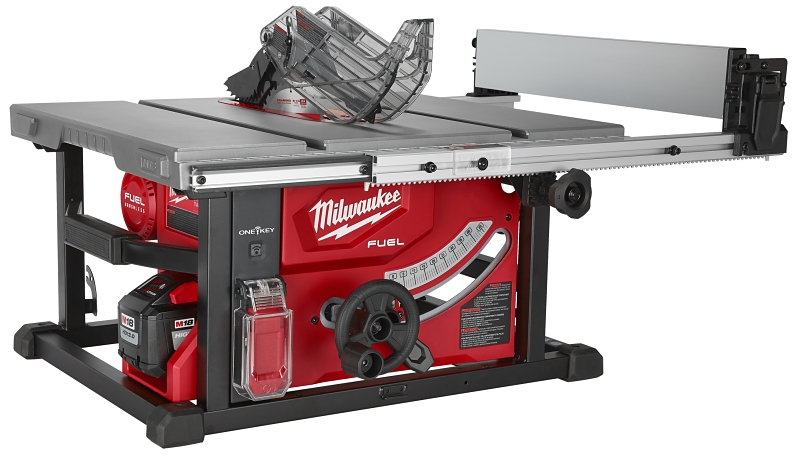

The Milwaukee® M18 FUEL™ 8-1/4 in table saw with One-Key™ generates the power of a 15 A corded saw, 24-1/2 in of rip capacity and up to 600 ft of cutting per charge. Designed for the professional carpenter, remodeler and general contractor, the Milwaukee® M18 FUEL™ 8-1/4 in table saw with One-Key™ is optimized for power, portability and productivity. The POWERSTATE™ brushless motor provides 6300 rpm and higher speeds under load for corded cutting performance. REDLINK PLUS™ intelligence ensures maximum performance and protection from overload, overheating and over discharge. The M18 REDLITHIUM™ HIGH OUTPUT™ HD12.0 battery delivers unmatch run time in all applications. The rack and pinion fence system maintains accuracy and allows for quick adjustments. For maximum productivity, the tool has on board storage for the included accessory and a tool-free guard and riving knife changes. An all metal frame provides durability for daily jobsite use. Compatible with ONE-KEY™, this is the industry's first table saw that wirelessly connects to a smart phone to track and manage a tool's performance and location. Integrated tool tracking available through ONE-KEY™ provides full visibility to how and where tools are being used across your network of jobs and users.

détails du produit

Taille de la tige:

5/8

Diamètre de la lame:

8-1/4

Courant nominal:

Angle de coupe:

45 deg 90 deg

Dimensions:

22 in L x 22-1/2 in W x 12 in H

Contient:

(1) Anti-Kick Back Pawl (1) Blade (1) Blade Wrench (1) Guard (1) Miter Gauge (1) Riving Knife (1) M18 FUEL 8-1/4 in Table Saw with One-Key (1) 48-11-1812 M18 REDLITHIUM HIGH OUTPUT HD12.0 Battery Pack (1) 48-59-1808 M18 and M12 Rapid Charger

Matériau:

Steel

Maximum Cutting Depth at 45 degrees:

1-3/4

Maximum Cutting Depth at 90 degrees:

2-1/2

Rip Capacity Left:

Rip Capacity Right:

24-1/2

Speed Rating:

6300

Valeur nominale de tension:

Features

•	POWERSTATE™ brushless motor - purposely built for the M18™ FUEL™ 8-1/4 in table saw with ONE-KEY™ to provide the power and performance of a 15 A corded table saw

•	REDLITHIUM™ HIGH OUTPUT™ HD12.0 battery pack provides 50% more power and runs 50% cooler versus standard REDLITHIUM™ HD packs and excellent pack construction provides the industry's ideal protection against jobsite conditions

•	Rack and pinion fence system for square cuts and easy adjustment

•	On board storage for guard, riving knife, push stick, fence and miter gauge

•	Single wrench blade change

•	REDLINK PLUS™ intelligence - ensures optimal performance and provides overload protection to prevent damage to the tool and battery during heavy applications while still maintaining compatibility across the entire M18™ system

•	24-1/2 in rip capacity to rip 4 x 8 sheets of plywood or OSB

•	All metal frame to handle tough jobsite conditions

•	Tool-free guard and riving knife changes

élément Spécification

Largeur (en):	24,41
Hauteur (en):	15,16
Longueur (en):	26,97
Poids (lb):	53,24
Taille cubique estimée (cu en):	9980,4
