0042143-FAN EXHAUST 100CFM LED LT 1SPD
Click to view Large Image

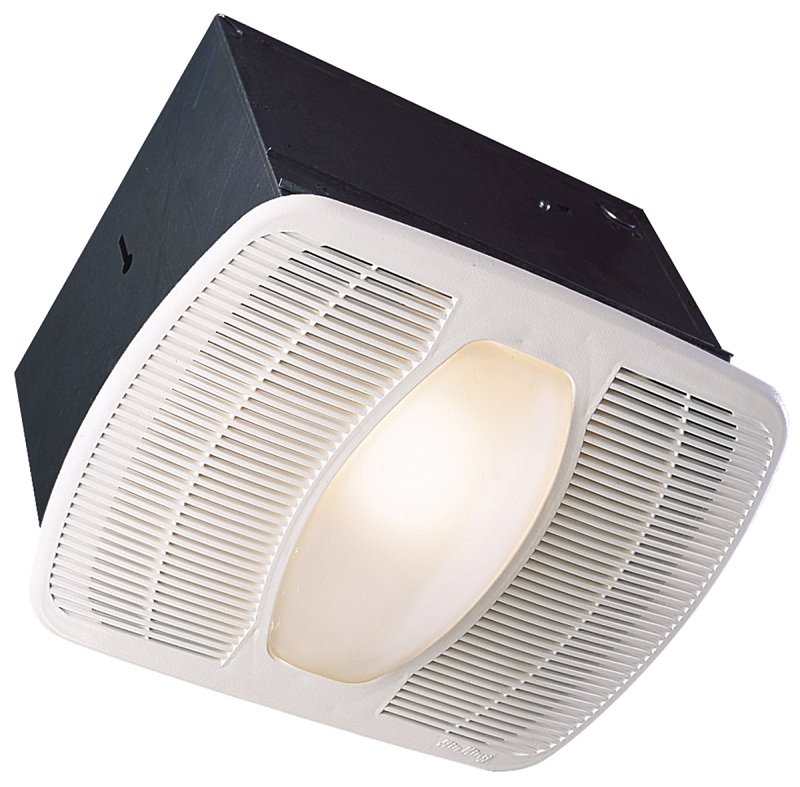

Air King LEDAK100 Exhaust Fan with Light, 0.6 A, 115/120 V, 100 cfm Air, 2 sones, LED Lamp, 4 in Duct, White
AIR KING
Model#: LEDAK100 | UPC: 083162940810 | SKU#: 0042143
Minimum Order Quantity: 1
USD 269.99/EA
Qty:  Add To List
Description

Polymeric grill secured in place with torsion springs, easily removed if necessary.
    Product Details
    Air Flow Rate:100 cfm
    Color:White
    Current Rating:0.6 A
    Dimensions:11 in L x 13-3/4 in W x 7-7/8 in H
    Duct Size:4 in
    Frequency Rating:60 Hz
    Grill Shape:Rectangular
    Installation Type:Ceiling
    Lamp Type:LED
    Material:Steel
    Sound Level:2 sones
    Speed Rating:1182 rpm
    Voltage Rating:115/120 V
    Wattage Rating:26.5 W
    Features
       • Balanced polymeric dual inlet blower wheel 51/4 in Dia, 27/8 in depth, 30 paddles, secured in place via press-fit
       • Enclosed 4-pole electronically balanced permanently split capacitor motor
       • Lifetime lubricated, suitable for continuous operation
       • Plastic collar for 4 in duct connection, comes complete with built-in non-metallic back draft damper for quiet operation
       • 1/2 in electrical knockouts provided, easy wiring access via either internal or external wiring compartment cover
       • LED lamp rated for 6 W, 450 Lumens 75 LPW, 4 W night light

    Item Specification

    Width(in):10
    Height(in):16
    Length(in):4.5
    Weight(lb):11.5
    Estimated Cubic Size (cu in):720
