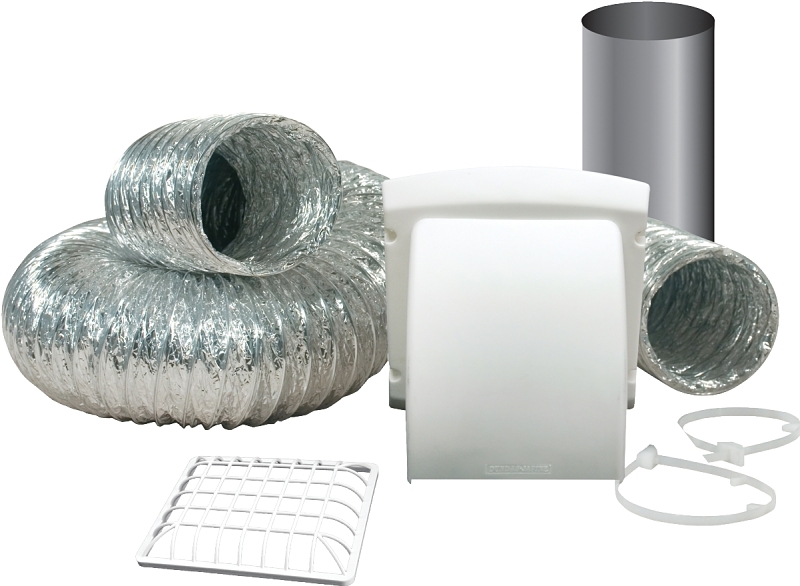

The DUNDAS-JAFINE ProMax™ dryer vent kit is part of the ProSeries product line-up. The kit includes a 4 in ProMax™ exhaust hood, a 4 in x 8 ft ProFlex™ 2158A listed and marked transition duct and 2 plastic adjustable clamps. The ProMax™ exhaust hood features a robust, wide mouth cap for optimum airflow and snug fit backdraft damper that prevents cold air, snow or rain from entering the home. The damper has been redesigned for great noise reduction. Additional features of the hood include a removable pest screen that helps to keep pests out and allows for easy cleaning of the duct as well as a snap on pipe to cap assembly that eliminates the need for lint trapping staples. All ProMax™ products have a UV-resistant coating to prevent the cap from discoloring and are paintable to match the exterior of your home. These hoods can be used in conjunction with brick, concrete or siding.

Product Details

Color:

White

Dimensions:

6-1/4 in W x 4-1/4 in D x 7 in H

Includes:

(1) 4 in x 8 ft ProFlex Transition Duct (1) 4 in ProMax Exhaust Hood (2) Plastic Adjustable Clamps

Material:

Polypropylene

Number Of Pieces:

Specifications:

4 in Collar

Features

•	Removable pest screen on ProMax™ cap allows for easy cleaning of lint and debris

•	Snug fit backdraft damper has been redesigned for great noise reduction

•	Snap on aluminum pipe to cap assembly eliminates the need for lint trapping staples

•	Cap can be painted to match the home's exterior

•	UV-resistant plastic protects cap from harmful effects of the sun

Item Specification

Width(in):	16.5
Height(in):	12.63
Length(in):	31.88
Weight(lb):	7
Estimated Cubic Size (cu in):	1107.27
