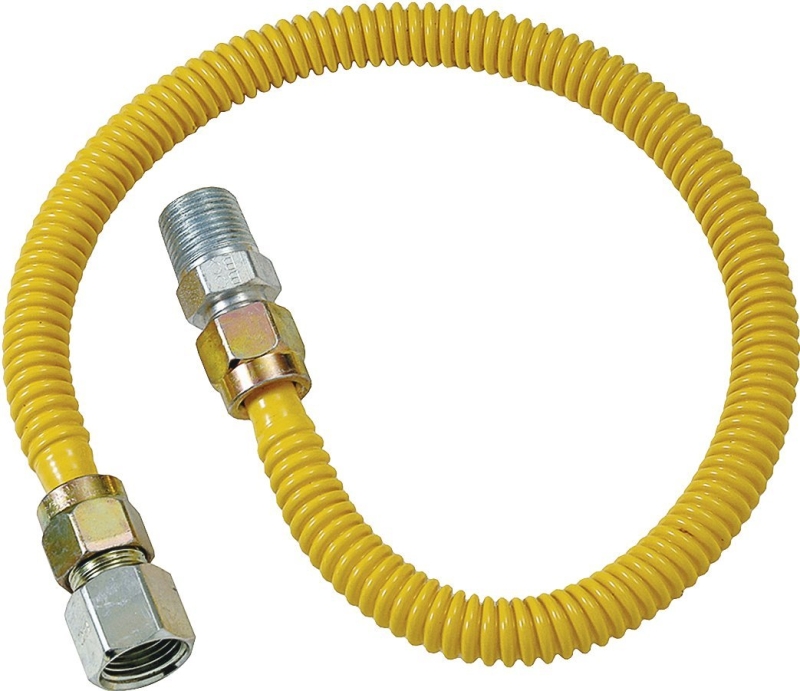

BrassCraft's ProCoat® stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat® is applied to the corrugated stainless steel connector using advanced powder coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat® coating is baked directly onto the connector surface at high-temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.

Product Details

Includes:

1/2 in FIP and 1/2 in MIP (Tapped 3/8 in FIP) Steel Fittings

Length:

36 in

Material:

Stainless Steel

Nominal Size:

1/2 in

Operating Temperature:

-40 to 150 deg F

Pressure Rating:

0.5 psi

Suitable for:

Natural Manufactured Mixed and Liquefied Petroleum (LP or Propane) Gases and LP Gas-Air Mixtures

Features

•	Corrugated stainless steel with corrosion-resistant coating

•	ProCoat® coating corrosion-resistant to harsh chemicals as well as UV rays and salt

•	Smooth, burnished connector ends seal with less torque, making installation easier

•	High tensile strength stainless steel is less susceptible to work hardening

•	Deep corrugations enhance flexibility and maneuverability of connector during installation

•	Gas connector is 100% leak tested

Item Specification

Width(in):	10
Height(in):	5
Length(in):	10.5
Weight(lb):	0.84
Estimated Cubic Size (cu in):	105
