5166079-ANCHOR PATIO EXPANSION BOLT
Click to view Large Image

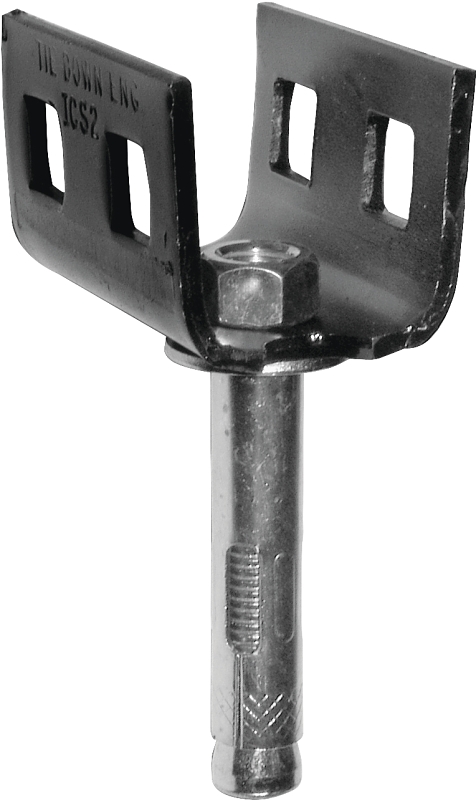

Tie Down MICS2 59125L Anchor with Expansion Bolt, Painted
TIE DOWN ENGINEERING
Model#: 59125L | UPC: 081628591255 | SKU#: 5166079 X
Minimum Order Quantity: 24
USD 13.99/EA
Qty:  Add To List
Shelf Pack: 24
Item needs to be ordered in multiples of 24
Description

Designed to be bolted to an expansion sleeve in an existing concrete slab or footing with only a 5/8 in drilled hole for expansion anchor bolt. Concrete must be 2500 psi minimum slab with 4 in minimum thickness and 6/6 x 10/10 wire mesh or fiber mesh installed. Concrete slab must allow 4725 lb of vertical tension on anchor without lifting. This assumes that the concrete weighs 150 lb/cu-ft. Minimum distance from the anchor shaft to one edge of the slab is 4 in from one edge and 6 in from any other edge. Black color.
    Product Details
    Color:Black
    Dimensions:3 in L x 5/8 in W
    Finish:Painted
    Type:Double Head
    Weight Capacity:150 lb/cu-ft

    Item Specification

    Width(in):17.5
    Height(in):10.5
    Length(in):11
    Weight(lb):1.2
    Estimated Cubic Size (cu in):84.22
