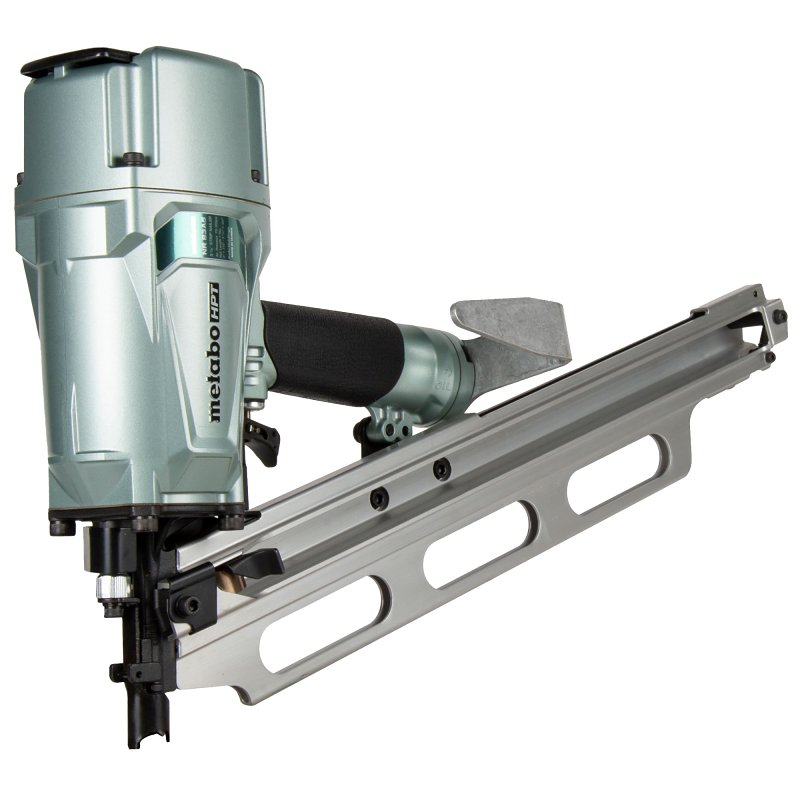

The excellent only gets better. The Pro preferred brand of pneumatic nailers introduces an addition to the durable A5 series tools, with the 3-1/4 in 21 deg pneumatic framing nailer with depth adjustment and aluminum magazine, model NR83A5Y. It offers the same features and performance as the legendary NR83A5 but its now equipped with an aluminum magazine. This aluminum magazine shares many components with the classic steel magazine including the ribbon spring. This nailer relies on the same proven cylinder valve system as the original model from the 80's, providing rapid response and high-driving power.

Product Details

Air pressure:

70 to 120

Collation Angle:

21 deg

Collation Type:

Plastic

Dimensions:

21-3/16 in L x 4-1/4 in W x 13-2/8 in H

Fastener Size:

2 to 3-1/4 in

Fastener Type:

(2) Strips of 21 deg Collated Nail

Handle Type:

Rubber Grip

Housing Material:

Aluminum

Includes:

889661M Rafter Hook and 875769 Safety Glasses

Magazine Capacity:

Triggering Mode:

Contact/Sequential

Features

•	High-grade aluminum magazine: provides exceptional durability and protects against jams

•	Tool-less depth of drive adjustment: for flush fastening in varying material

•	Accepts: two strips of 21 deg x 0.113 to 0.131 in collated nails ranging from 2 to 3-1/4 in L

•	Cylinder valve drive system: for rapid response and increased durability

•	Hardened claw tip: grips wood for driving nails at different angles and resists wear

•	Selective actuation on trigger: allows for either sequential or contact nailing

•	Rubber grip: for control and comfort during use

•	Open nose design: for extraction should a nail jam

•	Rafter hook: included for convenience

•	Locking feeder system: makes replenishments quick and easy

Item Specification

Width(in):	5.1
Height(in):	15.8
Length(in):	23
Weight(lb):	11.7
Estimated Cubic Size (cu in):	1853.34
